Calculate Crosswind Components: A Runway Calculation for Pilots

Any mass of air moving across an airfield creates a physical force against an incoming aircraft. In flight training, instructors teach students to calculate the exact lateral push acting on the airframe. The goal of any component calculation is to translate a weather report into actionable data. A pilot cannot land safely without assessing the strength of the cross wind.

When air traffic control reports current local conditions, the controller broadcasts a wind direction and a wind speed. However, the plane rarely lands facing directly into that compass point. Instead, it tracks down a fixed runway. Therefore, the pilot must mentally divide the wind into two forces: one parallel to the path of travel, and one pressing sideways.

Why Calculate Crosswind Components?

Certification test pilots determine the highest lateral wind limits that a crew can safely manage. The POH establishes a maximum crosswind component threshold for every aircraft. If you fail to accurately calculate the crosswind, you risk overestimating your rudder authority. Arriving with excessive lateral drift causes sideloading on the landing gear. The only way to prevent damage is an explicit evaluation of the exact crosswind component before landing.

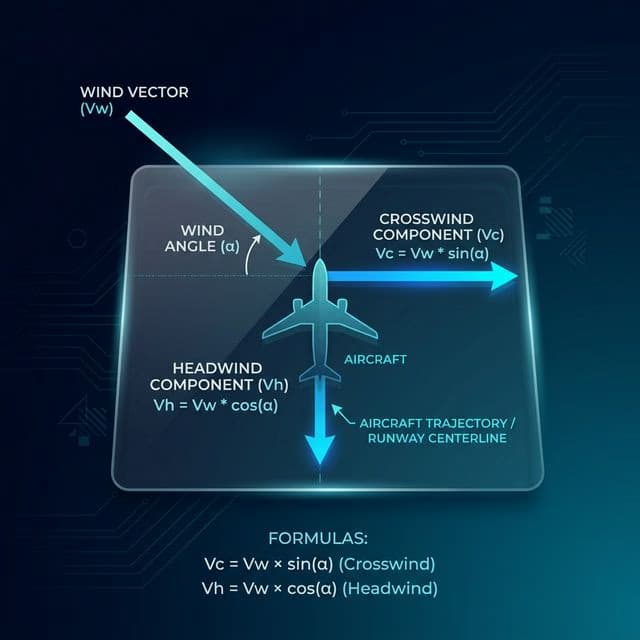

The geometric foundation for all aviation wind theory relies on trigonometry. While digital avionics handle the math today, the principles never change. A wind vector hitting the airplane off-center forms a right triangle relative to the nose line.

Leveraging the Sine Function

To isolate the lateral force, we use a trigonometric function. You determine the angular difference between the wind direction and the nose, then compute the sine of that difference. This scales the raw wind intensity into the sideways push affecting the wings.

When the wind blows straight down the runway at a zero-degree angle, the sine value is zero, yielding zero crosswind component. Conversely, when the air blows directly across the pavement at a ninety-degree angle, the sine value is one. At this peak, the total wind speed equals the crosswind component.

A Practical Arithmetic Example

Imagine a scenario where the tower reports 20 knot winds. The angular difference between the compass source and the runway heading is 30°. By using a flight computer or calculator, you input the data. The sine of a 30° differential is 0.5. To complete the math, you scale the 20-knot speed by 0.5 to find a 10-knot crosswind component.

A disciplined crew follows a protocol to evaluate their safety margin. They quickly calculate crosswind components using a standardized flow. Any deviation from this sequence risks errors in the calculation.

Finding the True Angular Difference

To initiate a calculation, you must establish the angular difference. Retrieve the runway heading from your approach plates. Decode the wind direction from the ATIS. By subtracting the smaller number from the larger, you produce the intercept angle.

Verify that both numbers use the same reference frame. Weather stations broadcast winds relative to true north, while the runway heading references magnetic north. Failing to apply magnetic variation creates a flawed angle, ruining the calculation accuracy.

Running the Final Numbers

Once you have the intercept angle, plug the variables into your calculator or use mental math. You calculate the lateral force, then compare it against the published limits. If the crosswind component exceeds your threshold, you must use a different runway or divert to another airport.

While pilots focus on lateral drift, crosswind calculations also require assessing the longitudinal axis. The second half of any vector decomposition provides the headwind or tailwind force acting parallel to the landing path.

The Benefits of Direct Headwind

A strong headwind is an advantage for takeoff and landing. It generates lift over the wings, allowing the aircraft to attain flying speed with a shorter ground roll. The cosine function isolates this value. As the wind angle tightens toward zero degrees, the cosine value approaches one, signifying the mass of air acts on the nose. A robust headwind reduces your ground speed, improving braking safety margins.

Recognizing Hazardous Tailwind Factors

If the angle extends beyond ninety degrees, the force becomes a tailwind. This pushes the airplane from behind, adding velocity to your ground speed. This requires more runway to stop. Takeoff performance degrades rapidly when pushed from behind, and many airframes have tailwind limits. A professional must always calculate this value to guarantee safety.

While students learn to execute a crosswind calculation for pilots using paper computers, modern aviators rely on a digital calculator. Using an automated tool eliminates arithmetic errors. When you punch the wind direction and speed into an interface, the computer runs the component calculation without risk.

Benefits of Digital Accuracy

A digital calculator allows you to test multiple scenarios. If an airport has intersecting runways, you can view the crosswind calculations for every strip. As weather shifts, having a reliable system to calculate crosswind components empowers you to select the most favorable piece of concrete.

Comparing Raw Component Data

Most professional interfaces display the crosswind component alongside the headwind. A pilot checks these outputs against their personal minimums. While trigonometry never fails, the speed of a computerized calculation allows you to spend less time on numbers and more time flying. Whenever you need to quickly calculate crosswind components, a web-based tool yields the safest result.

Aviation navigation depends on managing track drift. The forces affecting an airplane on approach are identical to those at cruising altitudes. En route navigation requires a pilot to establish an offset angle to counteract the wind. If you fail to calculate your drift, you will slowly move off course.

Strategic Application for Landing

Applying these data points during the descent separates amateur aviators from professionals. When you have a confirmed crosswind component, you can establish an angled approach on final. The airplane tracks down the localizer while the nose is pointed into the wind.

As the wheels drop toward the runway, the pilot transitions from an offset to a wing-low slip. They use the rudder to align the nose with the centerline, banking the wing sideways to halt movement. Without taking the time to calculate crosswind components, the pilot lacks the anticipation needed to apply the correct control input. The plane touches down with a sideload, risking a runway excursion. This proves why a dedicated calculation is a mandatory cornerstone of safe flying.
